EXALUX™ CONNECT TX100N is an ultra compact wireless DMX transmitter that can be used in the studios or on location.
CONNECT TX100N, in short:
Built-in LumenRadio CRMX™ transmitter,
1 DMX universe
Wide range DC power mode,
PoD (Power Over DMX) compliant,
Aluminium unibody enclosures,
Neutrik™ XLR connectors, industry standard compliant.
CONNECT TX100N features PoD technology which enables the unit to be powered via its XLR connector. The unit is fully compliant with all LumenRadio CRMX™ receivers, such as RX100S and RX200N.
APENAS POR ENCOMENDA
A sua encomenda será colocada directamente ao nosso fornecedor.
Cases of use
Connect the TX100N to your DMX console and turn it into a wireless DMX console allowing you to control all your CRMX compatible lighting fixtures.
|A| Link Button |B| Unibody Aluminum Housing |C| 3/8 Female Adapter |D| Antenna
|E| Neutrik XLR 5 Male (PoD compliant |F| CRMX by LumenRadio™ |G| DC-Jack Input
|H| Status Indicator |I| DMX Indicator |J| Power Indicator
Product benefits
Designed for the field
CONNECT TX100N feature unibody enclosures milled from a block of aluminium, allowing them to get a compact and stronger design.
The external antenna allows a long range, up to 500m depending on the transmitter and the environment.
Powered over DMX
CONNECT TX100N CRMX transmitter is our first PoD-PD compliant system.
PoD concept has been designed to ease powering DMX dongles (power & data in the same 5pos DMX cable). POD means less cable and a single power supply for several devices.
Thanks to its wide supply range (+5 to 24VDC), CONNECT TX100N can be powered through the USB connector of a DMX fixture, a Vlock battery via the D-TAP connector or any external PSU.
Universal mounting
CONNECT TX100N unit can be mounted on industry-standard AV/Cinema clamps, tripods and arms thanks to the 3/8 UNC adapter.
It’s easy, simple and it will save you time!
Removable antenna
The connect TX100N‘s antenna is removable, meaning you can replace it by a different model to better suit your needs.
LumenRadio CMRX™
Based on LumenRadio CRMX™ technology, EXALUX™ CONNECT RX200N brings DMX fidelity without any latency.
What's in the box ?
CONNECT TX100N UNIT
USB-A/DC-JACK CABLE (0.25M)
D-TAP/DC-JACK CABLE (0,45M)
Accessories

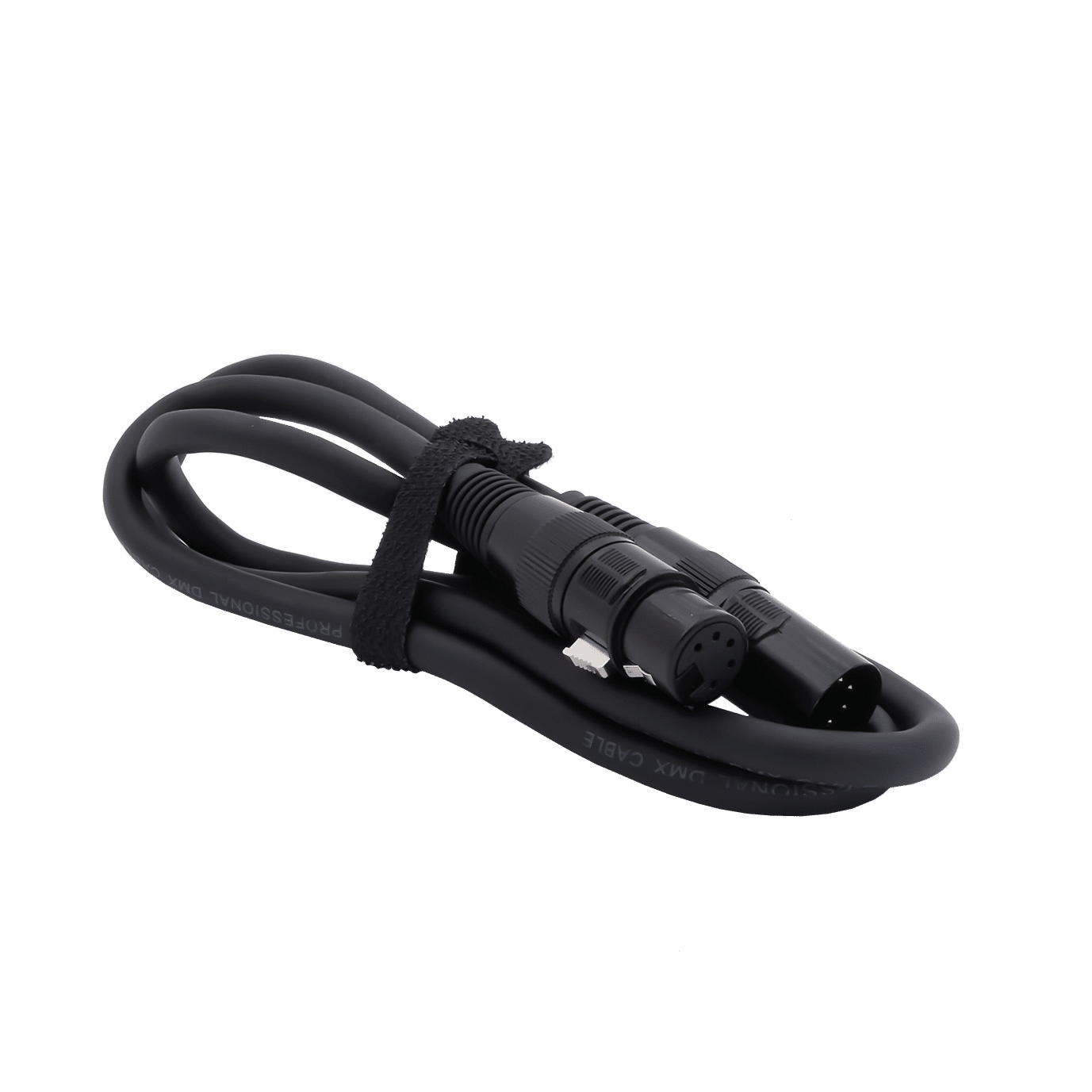

5-PINS DMX-PoD CABLE
1 metre 5-pins DMX cable, PoD (Power Over DMX) compliant.
Specifications
TECHNICAL SPECIFICATIONS
------------------------
Power Connection: 2.0x5.5MM DC jack
Interface: Unlink (switch), Power, Paired, DMX Status (LED)
Power Consumption: 1.5W
Housing / Mounting: Aluminum / M10
IP Rating: IP30
Certifications: CE, RoHS
Weight: 185g
OPERATING CONDITIONS
---------------------
Input Voltage: Min: 4.5VDC | Typ: 5VDC | Max: 26VDC
Storage Temperature: Min: -20°C | Typ: 25°C | Max: +75°C
Operating Temperature: Min: -10°C | Typ: 25°C | Max: +55°C
RADIO INTERFACE
---------------
Standard / Technology: LumenRadio CRMX™
Frequency: 2.402 ~ 2.480 GHz
Antenna: Omnidirectional, 2.4GHz 2.0dBi, SMA
RF Output: 20 dBm (100mW)
RF Modulation: GFSK
Range: 500-1000m (depending on the environment)
DMX INTERFACE
-------------
Protocol: DMX512-A
Universe Support: 1
DMX Frame Rate: 0.8-830Hz
End-to-End Latency: < 5ms
DMX Input: Neutrik XLR 5 pins Female
MECHANICAL (WITHOUT ADAPTER)
Frequently asked questions
-
PoD concept has been designed to ease powering DMX dongles (power & data in the same 5pos DMX cable), concept and terminology inspired by Ethernet PoE – Power-over Ethernet.
CONNECT+ is the a PoD-PSE compliant system (Power Sourcing Equipment), while TX100N CRMX transmitter is our first PoD-PD compliant system (Powered Equipement).
DMX XLR5 pin 5 (PoD 5V) is used to carry +5VDC power supply, 500mA max (USB standard). DMX XLR5 pin 4 (PoD Detect) is used to monitor and detect PoD systems.
For security reasons, the PoD 5V output (on PoD-PSE devices) on each DMX XLR5 (pin 5) is controlled by a power switch with limitation and protection features (V, I, T°), and the voltage is constantly monitored (PoD Detect). -
When comparing the radio CRMX emitter/receiver dongles available on the market, user should consider the following :
An XLR5 connector embedded into the dongle case provides a more compact and reliable solution than a cable-based XLR connection.
CRMX radio range is related to the antenna, wether it is internal or external, the latter being more efficient than the former, especially in a radio disturbed environment.
A device with an embedded battery will provide a more compact solution, but it will need to be recharged after a few hours. A device without internal battery will require an external cable (if not powered direclty form DMX) and it can be powered by an external battery with large capacity and extended life, or by an external power supply, sometimes over a wider power supply voltage,
Actually, this all depends on the way you want to build and use your lighting control system and equipments. -
CRMX by LumenRadio™ patented Cognitive Coexistence technology allows our wireless solutions to ensure optimum performance even when other wireless systems are operating in the same area.
This achievement is possible because CRMX is based on the Frequency Hoping Spread Spectrum (FHSS) technology.
SKU : CNT.001.005
EAN code : 3760252033450
