LumenRadio CONNECT eTX4
LumenRadio CONNECT eTX4
EXALUX™ CONNECT eTX4 is an add-on wireless DMX/RDM transmitter for CONNECT+. It features 4 CRMX/CRMX² transmitters in an ultra compact unit.
CONNECT eTX4, in short:
CONNECT+ Add-On Unit
4 transceivers / 4 DMX universes
DMX + RDM compliant
CRMX, CRMX², W-DMX compliant
Removable antennas
User friendly design
5/8’’ Spigot mount
CONNECT eTX4 is fully compliant with all LumenRadio CRMX/CRMX2™ such as RX100S and RX200N.
APENAS POR ENCOMENDA
A sua encomenda será colocada directamente ao nosso fornecedor.

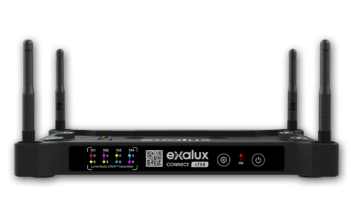

A closer look..
|A| TX Indicator |B| Setting Switch |C| Power Indicator |D| On/Off Switch
|E| CRMX by LumenRadio™ |F| Unibody Aluminum Housing
What's in the box ?
CONNECT eTX4 UNIT
Specifications
FEATURES
---------
Wireless: LumenRadio™ TiMoTwo
Protocol: CRMX, CRMX², W-DMX
Power: Powered from CONNECT+ SnapLink port
Settings: Adjustable via CONNECT+ control panel
Interface: Membrane switch keypad (Settings / On-Off), RGB LED indicators
Others: Firmware upgrade via CONNECT+ USB port
TECHNICAL SPECIFICATIONS
-------------------------
Power Connection: Exalux SnapLink, 2 PoGo Pins (from the CONNECT+ Unit)
Interface: Switch: Settings, Power
RGB LED Indicators: Universe colors
DMX Status (LED)
Power Consumption: ~6W max
Housing / Mounting: Aluminum / black
IP Rating: IP3X
Certifications: CE, RoHS
Weight: 950g
OPERATING CONDITIONS
---------------------
Input Voltage: Typ: 5VDC
Storage Temperature: Min: -20°C | Typ: 25°C | Max: +75°C
Operating Temperature: Min: -10°C | Typ: 25°C | Max: +55°C
RADIO INTERFACE
---------------
Standard / Technology: LumenRadio™
Protocols: CRMX, CRMX², W-DMX G3/G4s
Frequency: 2.402 ~ 2.480 GHz
Antenna: Omnidirectional, 2.4GHz 2.0dBi, SMA
RF Output: 20 dBm (100mW)
RF Modulation: GFSK
Range: 500-1000m (depending on the environment)
SNAPLINK INTERFACE
------------------
Protocol: USB2.0
Voltage: 5VDC
MECHANICAL (WITHOUT CONNECT + UNIT)
MECHANICAL (WITH CONNECT + UNIT)
Download
SKU : CNT.004.001
EAN code : 3760252034259
