BB&S Pipeline RAW 4' Remote Phosphor LED
BB&S Pipeline RAW 4' Remote Phosphor LED

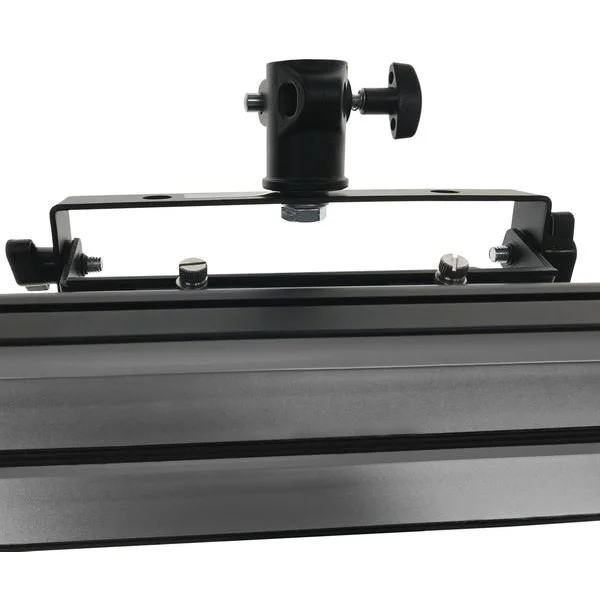

Pipeline Reflect 1' offers double the output of the original Pipeline Remote Phosphor fixture. You get the same great quality lighting at 95 TLCI drawing 10 watts but with an output of almost 2,000 Lumens. Available in 3200k, 4300k or 5600K. it comes with a 3-Pin XLR male frame mounted in the end. The fixture comes with two sliding mount plates with 1/4" and 3/8" thread. The mounts slide from end to end for different mounting positions including side mounted or back mounted and you can purchase single, dual or quad mini yoke mounting options. Optional 3-Pin XLR Cables with high quality wire and insulation are available in 3 lengths; 8', 15' and 25'. An optional 10 watt inline Driver/Dimmer with a female 3-Pin XLR is available with a d-tap cable included for 14.4 VDC battery operation. An optional world power supply with all 4 world adapters is available when you want to use AC power.
You can also power each Reflect with the optional 4-Way Controller with four 40 watt channels.
Better Color over time:
Where traditional LED fixtures may offer a partial solution for the studio, they are limited in providing highly accurate color rendering. And while their phosphor layer is applied directly onto the heat generating LEDs (that degrade over time), BB&S uses remote phosphor technology, which separates the LEDs from the color generating phosphor coating, enabling more vivid color generation, TLCI as high as 97, and less color degradation over the long term. From Small over Big Broadcast Studios to Run and Gun With its small footprint, low power draw, high light output at 97 TLCI or better, and full dimming.
The BB&S 2’ 2-Bank remote phosphor lighting instruments are made to order for small studios and remote broadcast and ENG. Clean and Easy Mounting Controllers can be wall or ceiling mounted. The 3-Pin XLR mounted within the fixture results in a cleaner installation. The Pipeline Reflect Single Pipes come with sliders. Upcoming Accessories Barn doors, gel set, grid accessories, and optional removable gel filters will be available soon.
APENAS POR ENCOMENDA
A sua encomenda será colocada directamente ao nosso fornecedor.
Features:
Twice the Lux count over distance as Pipes without Reflect Housing
Variety of Lengths: 1’, 2’, 3’, 4’, 6’, 8’
Perfect Rendering 97 TLCI Remote Phosphor Pipes
Choice of 3200°K, 4300°K or 5600°K
90-degree angle dispersion
Minimized Spill
Robust aluminum housing
Easy Mount
Optional battery operation
Compatible with BB&S 4-way Controller with DMX/RDM 512 in/out (all function)
Strobe capability, especially when used with optional BB&S 4-Way Controller
48V for precise dimming
