Hof Halutec HOFKON 290-4 XHD BOX CORNER
Hof Halutec HOFKON 290-4 XHD BOX CORNER
Item no. H12290404
HOF proudly presents its new XHD Box Corner.

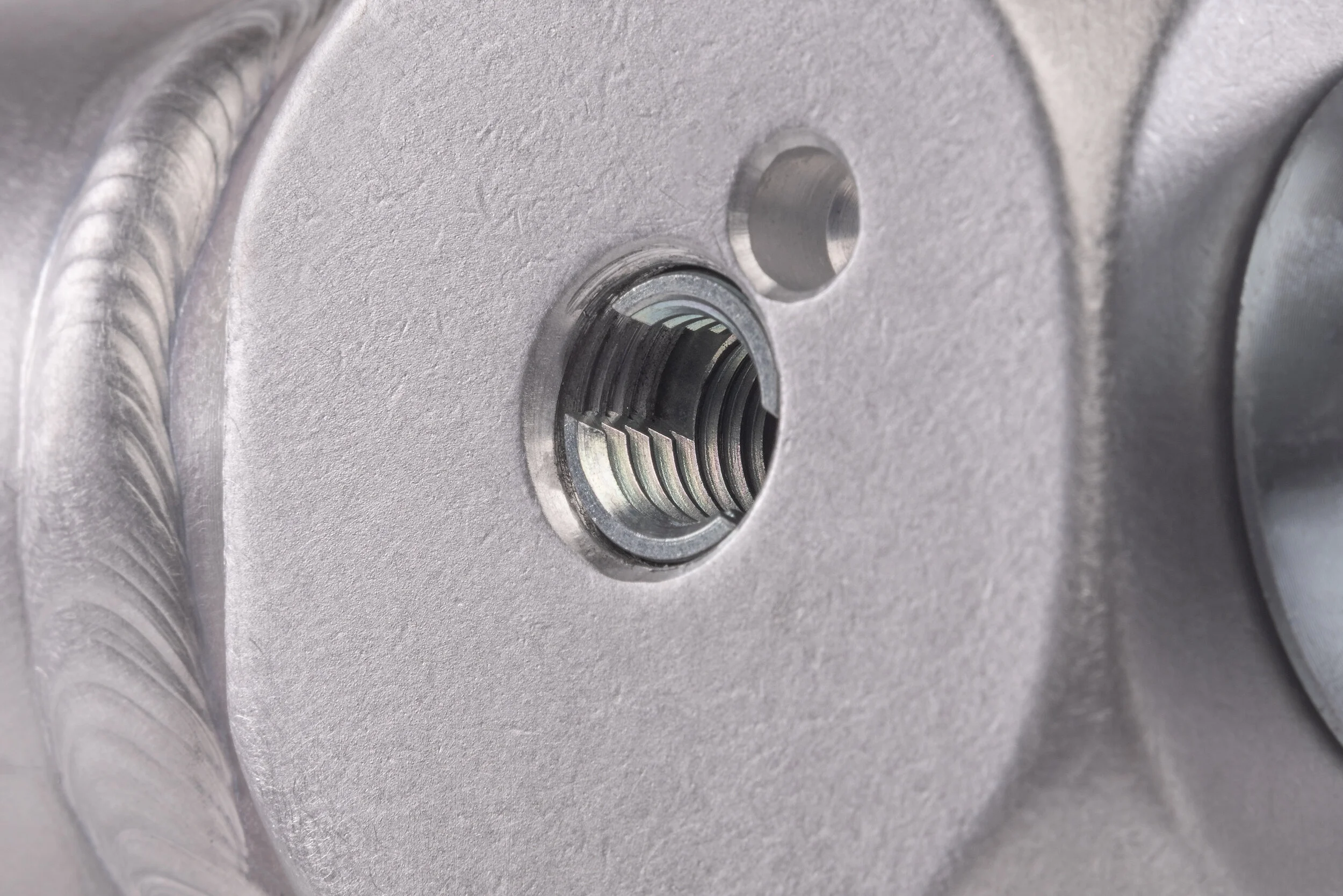

Instead of a classic aluminium thread, like the already existing Box Corners, the new XHD Box Corner comes with a steel thread. Compared to an aluminium thread, the steel thread has a significantly longer life and is more reliable.
Thanks to its cross bracing on 6 sides and the significantly stronger main tubes, the XHD Box Corner has up to 40% more load capacity than the standard box corner.
The XHD Box Corner was especially developed to carry big loads, for example stage constructions and stage roofs, exhibition booths as well as frame for big advertising panels and screens. The XHD Box Corner fits on many 30cm boxtrusses.
Load capacity. up to 40 % more than the standard box corner
Measure 300 x 300 x 300 mm
Tube 50 x 4 mm
Bracing corss bracing on all 6 sides; 25 x 3 mm

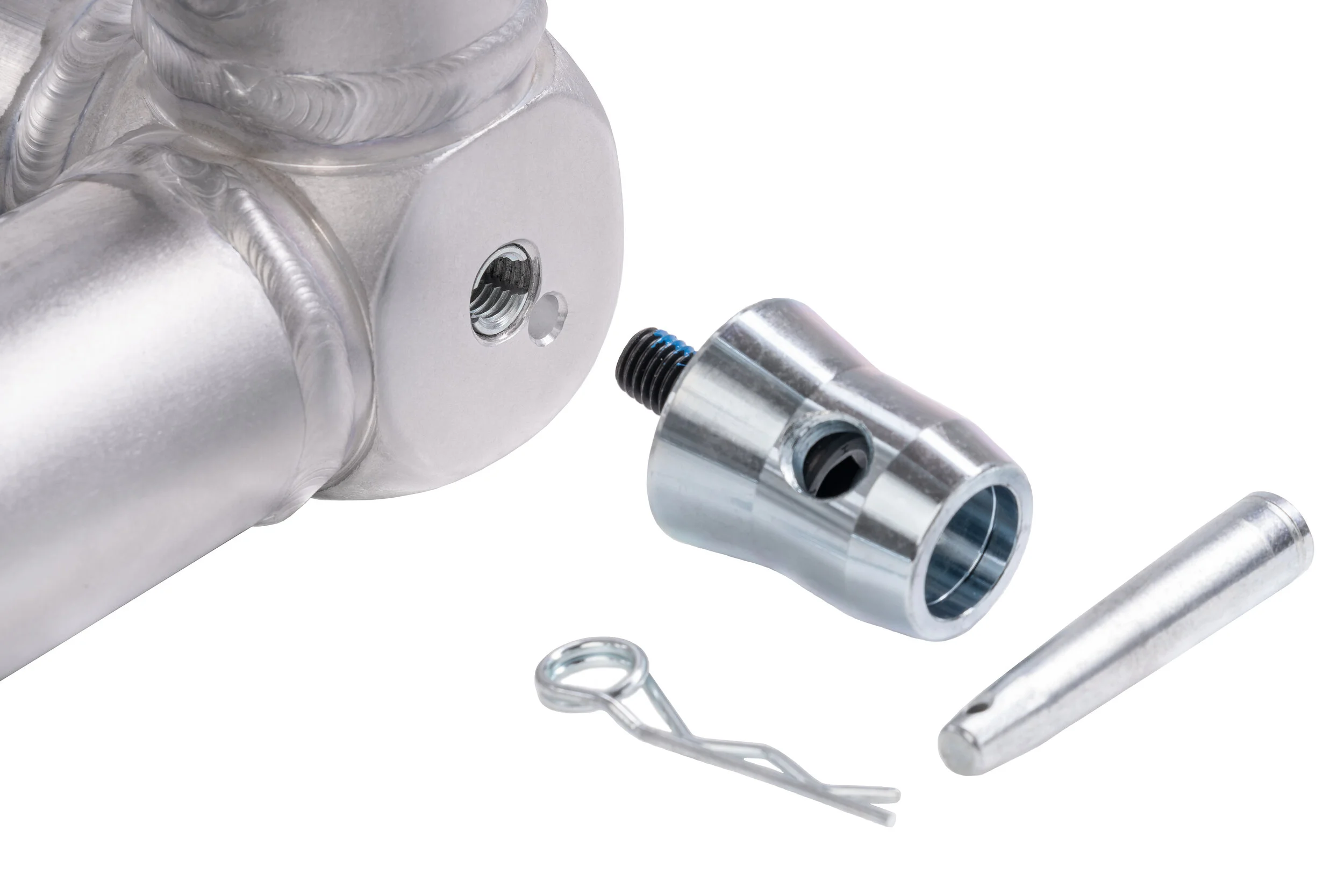

Equipment 8x conical connector, 16x M10 bolts, 16x trusspin, 16x r-clip
Thread M10 thread
Weight 9 kg
Alloy EN-AW 6082 T6
