9.Solutions CHEESE PLATE
9.Solutions CHEESE PLATE

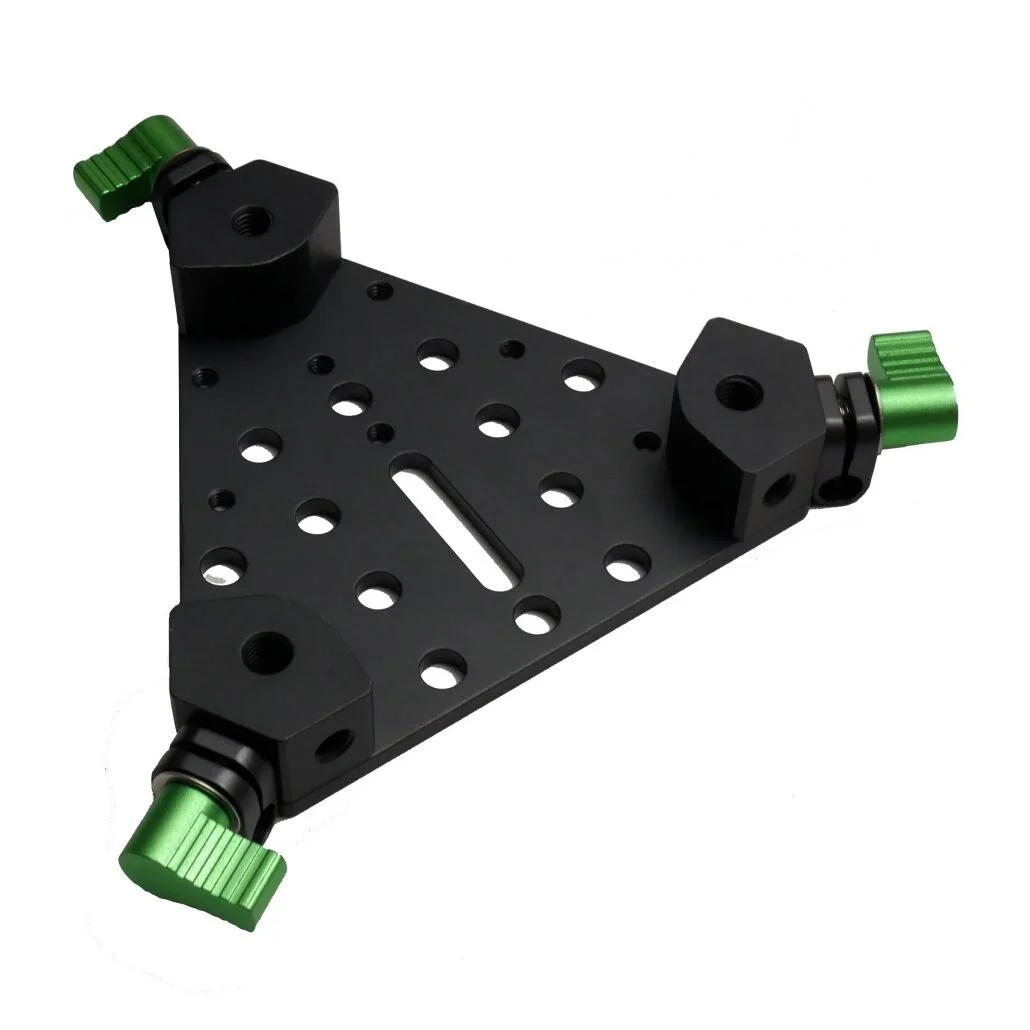

The multi purpose 9.Solutions Cheese plate differentiates itself from most other cheese plates by offering the possibility to build your rigging out from its side tapped mounting blocks.
Each of its three corner positioned blocks are tapped with 3/8”-16 side and bottom holes.
It also features an elongated 10x36mm center slot for accurate positioning of ball heads.
All 10mm through plate holes and four of the 1/4”-20 tapped holes are spaced with the industry standard 1 inch center distances.
The three included 3/8” rod clamps can be repositioned in any 3/8” tapped hole.
APENAS POR ENCOMENDA
A sua encomenda será colocada directamente ao nosso fornecedor.
Specifications
Part Number – 9.VB5115
Weight: 4480 Grams
Color: Gray
Connection possibilities:
Top Plate
(1x) 10x36mm elongated slot
(12x) 3/8” (10mm) through holes (each 10mm top plate hole is spaced with 1 inch centers)
(10x) 1/4”-20 tapped holes
Each corner block
Three side 3/8”-16 tapped holes and (1x) underside 3/8”-16 tapped hole
Included: (3x) 3/8”-16 multi-placement rod clamps
