Specifications:

Input: AC 100-240V 47-63Hz

Output:

• 2x DC 16.8V 4.8A

• 1x AUX DC 13.8V 110W max.

Charging current: 4.0A per channel

Data socket

Size: 250 x 145 x 80mm (9.84" x 5.51" x 3.15")

Weight: 0.7Kg (1.55lbs)

Description

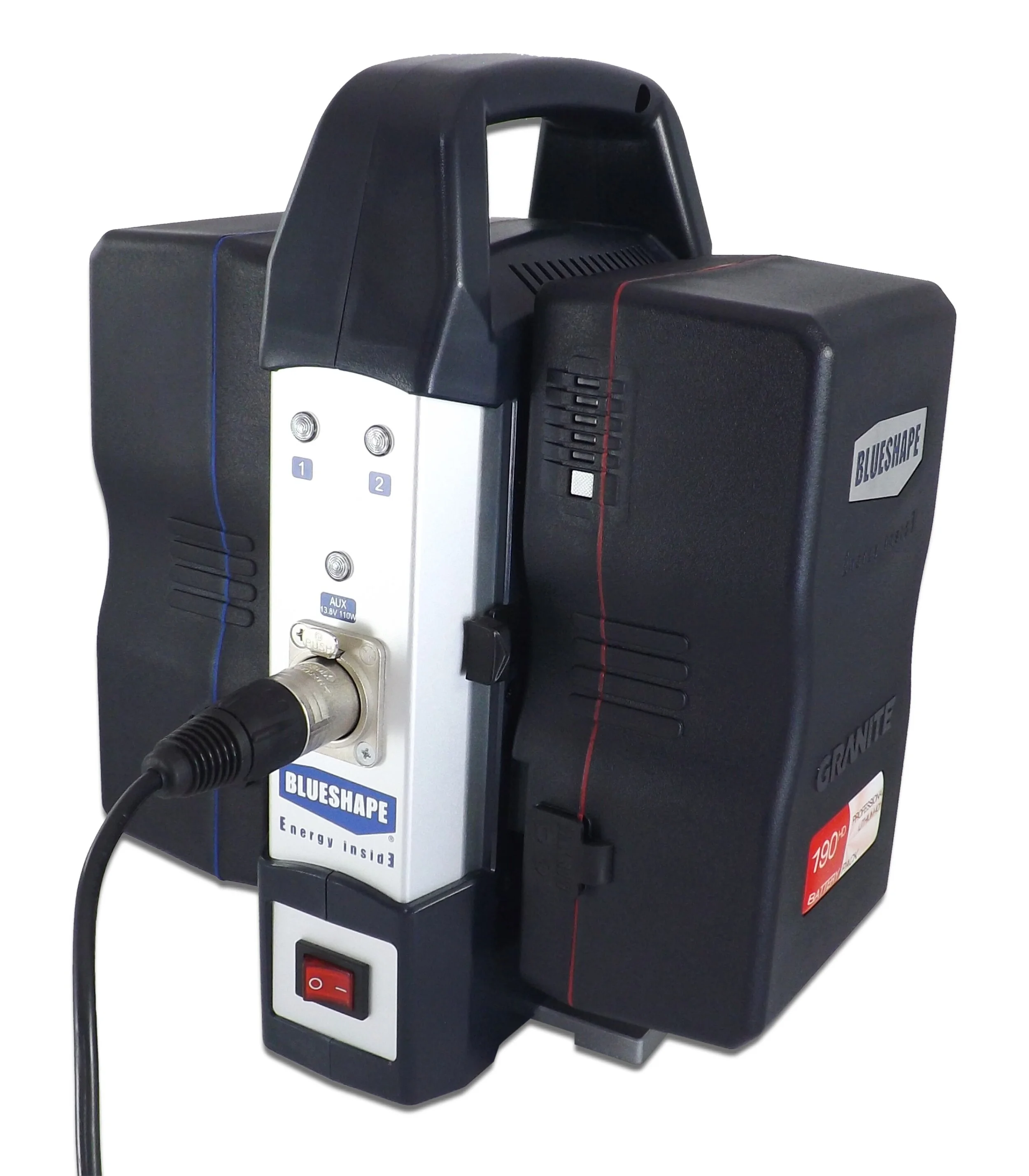

Designed exclusively for V-Lock Li-Ion batteries: charges 2 batteries in sequence. Compact size, easy to carry in bag, strong and robust assembly, ideal for travel.

Rotating foot support increases stability and reduces bulkiness when not in use.

IPCS and CTP features provided for improved battery and charger protection.

Provided with 1 Auxiliary DC output power source at 13.8V 110W through an XLR 4 pin socket.

Can be powered either by AC or alternatively by DC: this feature makes the CVTR2 an ideal companion for On the road charge: it can alternatively be powered by the innovative, “In-car charge adapter “, PWCAR: Plug to the cigarette lighter socket and go.

USB connection to interface the CVTR2 with computer: up to 4 chargers can be monitored by a single PC through BSCVMon (not provided).
