Specifications:

Input: AC 100-240V 47-63Hz

Output:

• 8x DC 16.8V 4.8A

• 1x AUX DC 13.8V 110W max.

Charging current:

• 4.8A per channel when only 2 batteries are charging

• 3.0A per channel when more than 2 batteries are charging

Data socket

Size: 170 x 150 x 280mm (6.39" x 5.91" x 11.02)

Weight: 2.9Kg (6.41lbs)

Description:

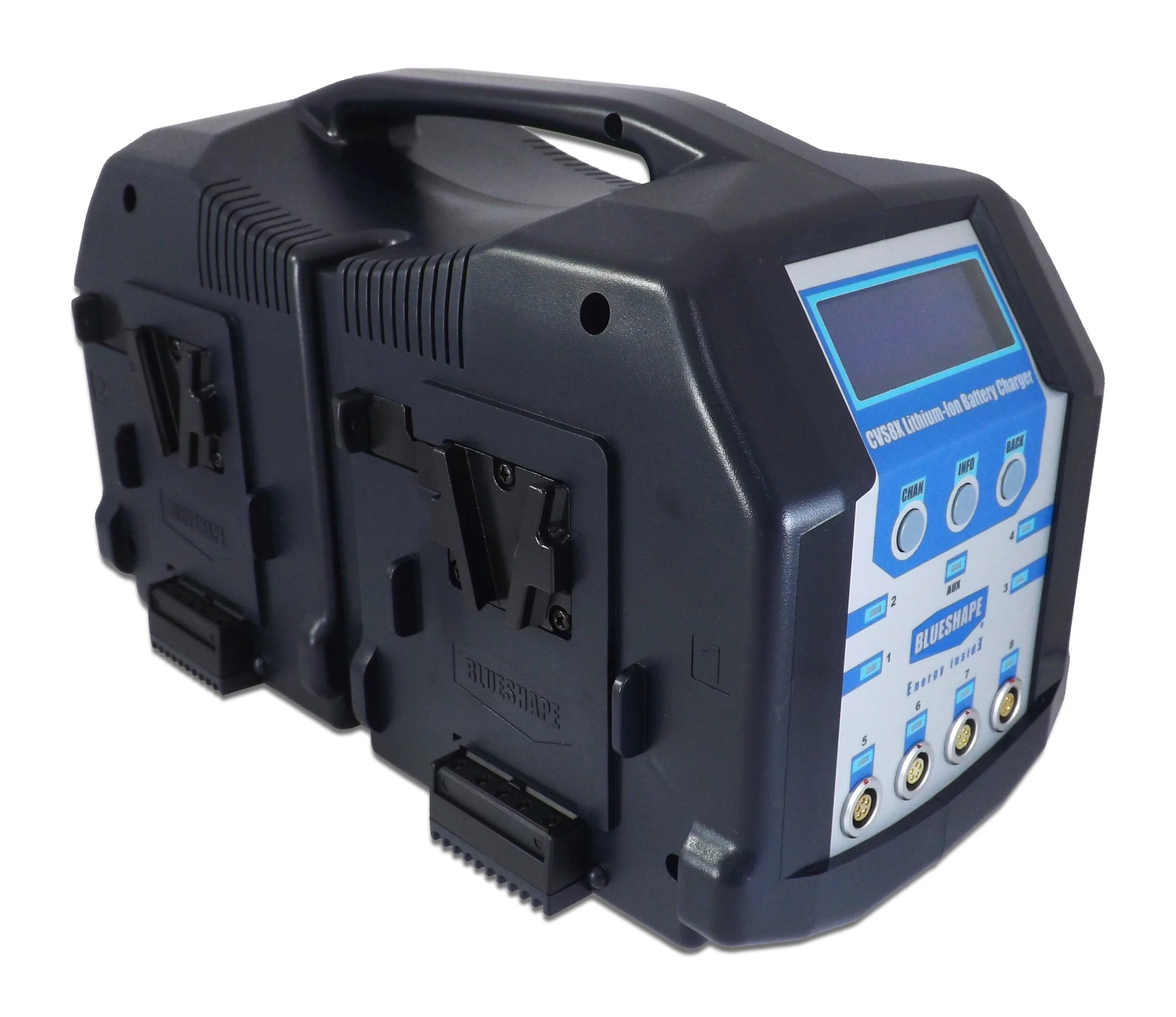

Designed exclusively for V-Lock Li-Ion batteries, can charge up to 8 batteries: 4 batteries fully simultaneously, 4 batteries in sequence.

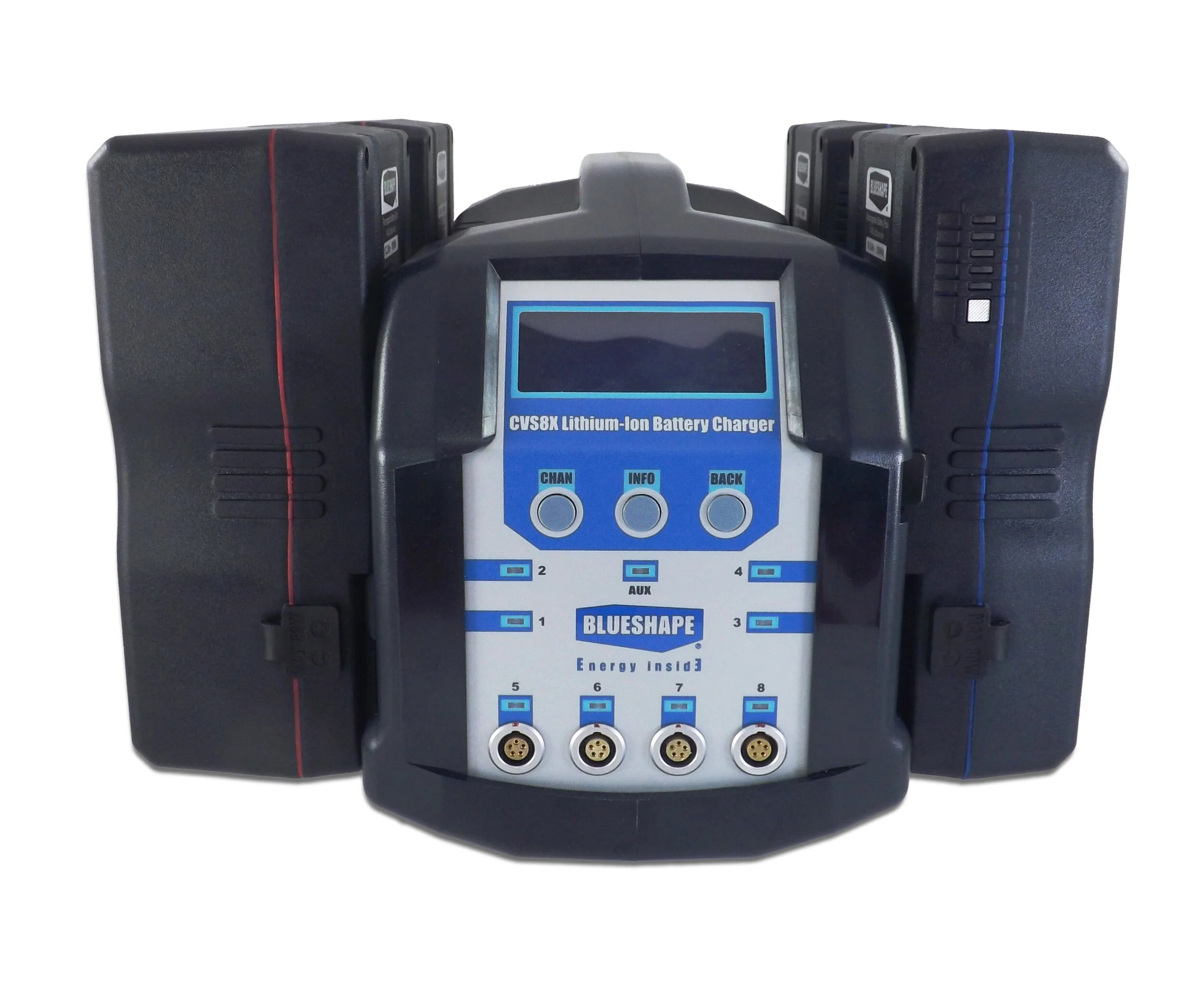

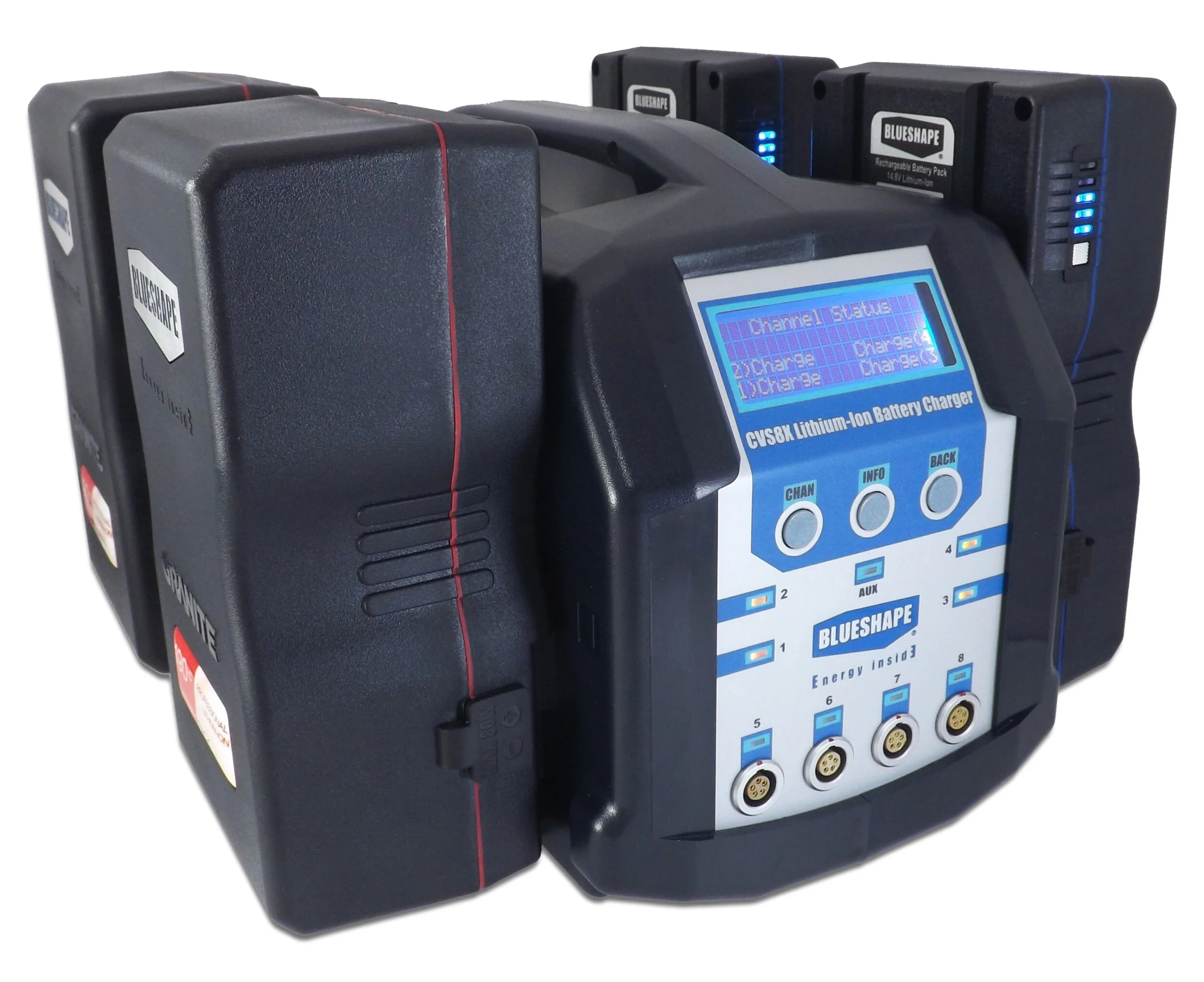

The LCD display shows battery digital information in real time like: state of charge, charge time to full, status information. 4 batteries are mounted on the chargers and a further 4 can be connected through CV-BA adapters to extend the total number of channels to 8.

Compact and robust design with a convenient handle for easy transportation. Redundant electronic design with 4 power supplies for increased reliability, it features IPCS and CTP for improved battery and charger protection.

Provided with 1 Auxiliary DC output power source at 13.8V 110W through an XLR 4 pin socket. USB connection to interface the CVS8X with computer: up to 4 chargers can be monitored by a single PC through BSCVMon (provided in the box with the special USB cable).
