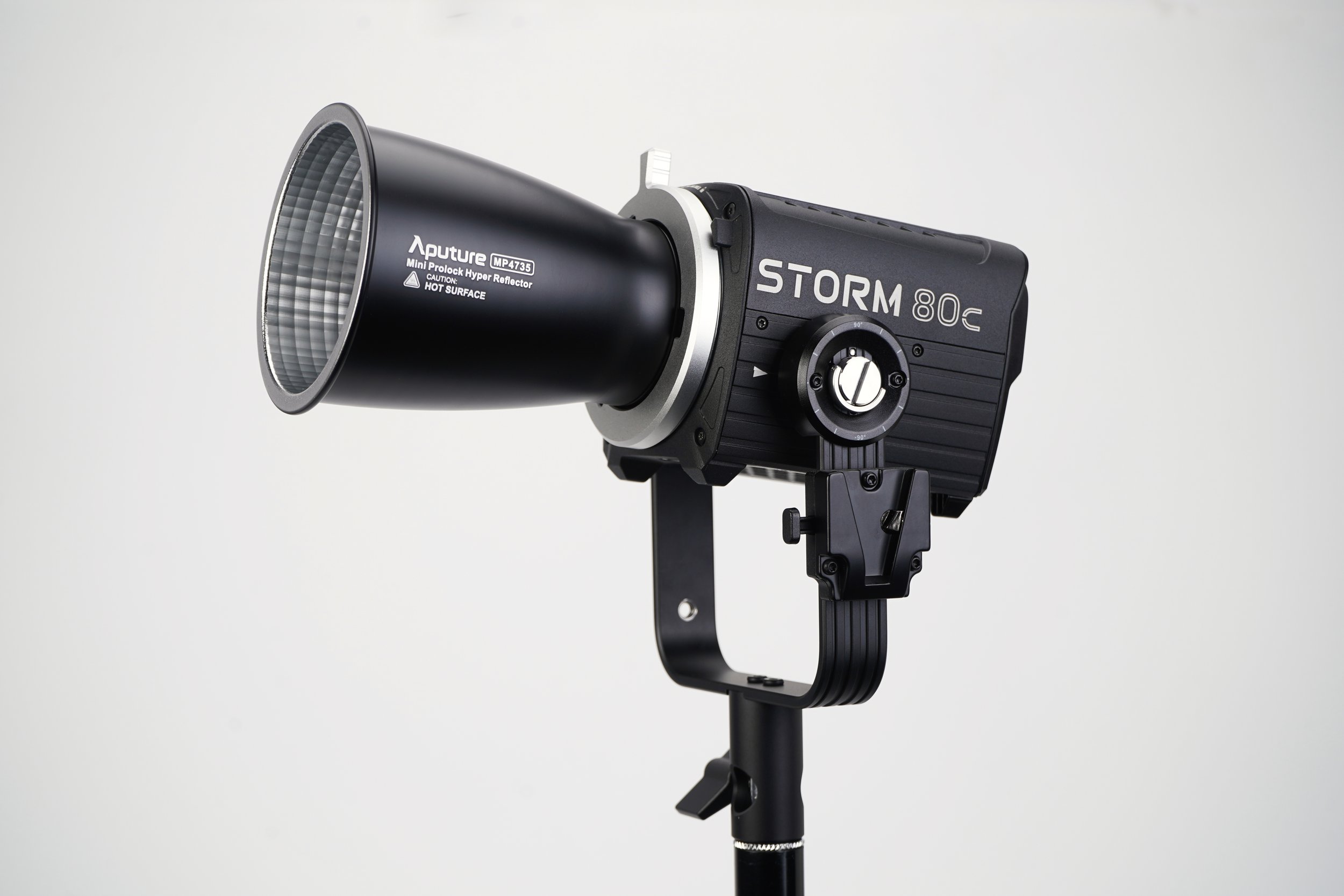

Aputure STORM 80c BLAIR-CG LED Monolight
Aputure STORM 80c BLAIR-CG LED Monolight
80W tunable color compact point source lamp with Mini ProLock Bowens Mount
Portable, powerful, and colorful. Take your lighting palette anywhere with this compact 80W point source fixture featuring the BLAIR-CG light engine.
What’s in the Box
1x STORM 80c Lamp Head With Yoke
1x Mini ProLock Hyper Reflector
1x Mini Lantern Diffuser
1x Mini ProLock Mount Protection Cover
1x AC Power Adapter
1x AC Power Cable (4m)
1x Soft Carrying Case
APENAS POR ENCOMENDA
A sua encomenda será colocada directamente ao nosso fornecedor.
Color Confident
The STORM 80c’s BLAIR-CG light engine (Blue/Lime/Amber/Indigo/Red/Cyan/Green) delivers higher quality tunable color light than any previous LED system, covering more than 90% of the Rec2020 color gamut. With the BLAIR-CG light engine you can trust that what you see matches what the camera captures.
Next Generation Range
The BLAIR-CG light engine enables the STORM 80c to achieve a wide CCT range of 1,800K-20,000K with full +/- green adjustment.
Mini ProLock Bowens Mount
A small sized version of Aputure’s ProLock locking Bowens Mount, the Mini ProLock holds modifiers rigidly in place and optics properly aligned.
BLAIR-CG: Colors Never Before Seen on an LED
The STORM 80c’s new BLAIR-CG light engine is the best tunable color light ever produced in an LED, delivering the greatest range and highest color accuracy. It can reach 90% of Rec2020 color space, achieving saturated colors in shades otherwise unobtainable, such as accurate yellow. The calibrated indigo emitter enhances fluorescing materials, resulting in white light that better matches natural daylight and tungsten. CRI 97+, SSI [P3200]): 88, SSI (CIE D5600): 84.
1,800-20,000K CCT and Full +/- Green Adjustability
The STORM 80c offers a best-in-class CCT range, the smallest, most portable light to do so. The color flexibility also offers 100% +/- green control, the full ASC MITC range of adjustment.
Small Size, Unlimited Possibilities
The STORM 80c features a compact design and removable yoke to stash wherever you need. Without the yoke the light measures just 6”x4”x4’ and 1kg. The yoke attachment points are 3/8in threaded sockets, so common grip mounts can be used to rig the light wherever you need. An optional handgrip with battery mount is also available.
Mini ProLock Bowens Mount
The STORM 80c features a mini version of the ProLock locking Bowens Mount, a more secure clamping design for attaching modifiers. Aputure offers modifiers with the Mini ProLock and an adapter to standard Bowens Mount.
Battery Options Small and Large
The STORM 80c can be powered from AC, V-mount batteries, or USB-C. Aputure makes an optional STORM 80c Handheld Bracket, with a V-mount battery plate and D-Tap cable. The STORM 80c also features a 100W USB-C port to power directly from inexpensive and lightweight power banks.
Multiple Control Options
The STORM 80c features professional connectivity options used in modern lighting: Sidus Mesh, CRMX, and DMX.
IP65 Weather Protection
Head-to-toe IP65 dust and weather protection means the STORM 80c can work in extreme environments. Seals on every connector and around components allow the light to be used outside in the rain.
CCT
1,800K
1,800K
3,200K
3,200K
4,300K
4,300K
5,600K
5,600K
6,500K
6,500K
10,000K
10,000K
20,000K
20,000K
Dis.
1m
3m
1m
3m
1m
3m
1m
3m
1m
3m
1m
3m
1m
3m
Bare COB
4,827 lux 430 fc
524 lux 49 fc
6,607 lux 614 fc
729 lux 68 fc
6,722 lux 625 fc
728 lux 68 fc
6,502 lux 604 fc
721 lux 67 fc
6,554 lux 609 fc
704 lux 65 fc
6,177 lux 574 fc
660 lux 61 fc
5,633 lux 524 fc
576 lux 54 fc
Hyper Reflector
13,915 lux 1,236 fc
1,391 lux 129 fc
19,443 lux 1,807 fc
1,942 lux 181 fc
19,432 lux 1,806 fc
1,941 lux 180 fc
19,850 lux 1,845 fc
1,924 lux 179 fc
18,783 lux 1,746 fc
1,877 lux 174 fc
17,621 lux 1,638 fc
1,756 lux 163 fc
15,391 lux 1,431 fc
1,540 lux 143 fc
Mini Lantern Diffuser
875 lux 79 fc
98 lux 9 fc
1,203 lux 112 fc
137 lux 13 fc
1,198 lux 111 fc
136 lux 13 fc
1,183 lux 110 fc
135 lux 13 fc
1,155 lux 107 fc
132 lux 12 fc
1,082 lux 101 fc
124 lux 11 fc
944 lux 88 fc
108 lux 10 fc
STORM 80c Specifications
Specifications
LED Chipset BLAIR-CG
CCT 1,800K – 20,000K
Color Gamut Coverage 90%+ Rec2020
CRI 97
TLCI 99
CQS (5600K) 96
CQS (3200K) 97
SSI (Tungsten) 88
SSI (D56) 84
TM-30 RF (Average) 96
TM-30 RG (Average) 103
Max Power Consumption 100W
Max Power Output 80W
Weather Resistance Rating IP65
Native COB Beam Angle 60°
Included Reflector Beam Angle 35°
Operating Voltage 100V ~ 240V / 50-60 Hz
DC Adapter Output 19V / 5.3A
V-Mount Battery Operating Voltage 14.4V
USB-C Power Specifications In 20V / 5A; Out 5V / 0.5A
Operating Temperature -20°C ~ 45°C / -4°F ~ 113°F
Storage Temperature -40°C ~ 80°C / -40°F ~ 176°F
Lamp Head Fan Noise Levels (at 1m) Smart Mode 26.1 dBA
Lamp Head Fan Noise Levels (at 1m) High Mode 26.7 dBA
Lamp Head Fan Noise Levels (at 1m) Medium Mode 24.4 dBA
Lamp Head Fan Noise Levels (at 1m) Silent Mode 22.3 dBA
Control Methods
- On-board
- Sidus Link App
- Sidus Link Pro App
- DMX
- RDM
- CRMX
Data Ports
- USB-C
- Locking 3-Pin DMX Terminal
Firmware Upgradeable
- Sidus Link
- Sidus Link Pro
- USB-C
Screen Type
- TFT
Wireless Range Sidus Bluetooth
- ≤100m / ≤262.5ft
Wireless Range CRMX (TimoTwo)
- ≤100m / ≤262.5ft
Dimensions
Lamp Head (Without Yoke)
10.1 x 10.4 x 14.7cm
4.0 x 4.1 x 5.8in
Lamp Head (With Yoke)
16.7 x 22.5 x 14.7cm
6.6 x 8.9 x 5.8in
Weight
Lamp Head (Without Yoke)
- 1.01kg / 2.23lbs
Lamp Head (With Yoke)
- 1.35kg / 2.98lbs
AC Power Adapter
- 405g / 0.89lb
