Aputure INFINIBAR PB12 – Single Panel LED RGB (120cm)
Aputure INFINIBAR PB12 – Single Panel LED RGB (120cm)
Key Features
For Studio and Film/TV Production
Output: 617 Lux at 3.3' (120º, 7500K)
2000 to 10,000K; RGB Color Control
47.4 x 1.8" Panel; AC/DC Operation
CRI 96 | TLCI 98 | SSI 74 | TM-30 94
DMX, CRMX, and Sidus Link App Control
Passive Cooling

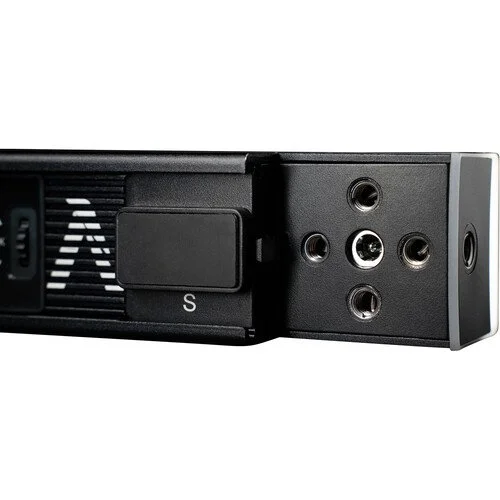

2 x 1/4-20" Threads, INFINIBAR Rail
Clamp to Baby Pin Adapter
Straight Connector Included
APENAS POR ENCOMENDA
A sua encomenda será colocada directamente ao nosso fornecedor.
Specifications
CCT
2,000K - 10,000K
CRI
≥ 96
TLCI
≥ 98
CQS
96
SSI (D56)
74
SSI (Tungsten)
85
TM-30 RF (Average)
94
TM-30 RG (Average)
103
Color Chipset
RGBWW
Single Pixel Mode Light Engine
RGBWW
Multi Pixel Mode Light Engine
RGB
Beam Angle (Half-Peak)
120º
Lumens
2,077lm
Max Power Output
27W
Max Power Consumption (Fixture)
36.5W
Max Power Consumption (Power Supply)
40W
Operating Voltage & Current (Fixture)
24V, 1.8A
Operating Voltage & Current (Power Supply)
100V-240V 50/60Hz, 1.5A
Battery Capacity
7.4V, 8000mAh, 59.2Wh
Battery Life
Approx. 80 Mins @ Max Output
Charge Time
Approx. 120 Mins (24V/2.67A)
Pixel Mapping
96 Pixels
Operating Temperature
-10ºC ~ 45ºC / 14ºF ~ 113ºF
Control Methods
Sidus Link App, DMX/RDM, LumenRadio CRMX
Wireless Operating Range (Bluetooth)
≤80m / ≤262.5ft
Wireless Operating Range (LumenRadio)
≤100m / ≤328.1ft
IP Rating
IP 20
Screen Type
OLED
Firmware Upgradeable
Sidus Link, USB-C
Cooling Method
Passive Cooling
Mounting
INFINIBAR Rail
Est. LED Lifetime (L70)
50,000 Hours
Est. Color Shift Over Lifetime
2% Over 6,000 Hours
Certifications
CE, FCC, KC, NCC, ROHS, RCM, ICES, UKCA, PSE
In the Box
1x INFINIBAR PB12
1x 48W DC Power Adapter (3m)
1x AC Locking Power Cable (1.5m)
2x Magnetic Spacer
1x INFINIBAR Clamp to Baby Pin Adapter
1x INFINIBAR Straight Connector
1x 5mm Hex Wrench
1x Carrying Case
